Engineer NZ-03 / NZ-05 Chip Cutter
NZ-03 / NZ-05 Chip Cutter
Ideal for removal of Chip Resistance, IC, etc. on dense S.M.D.

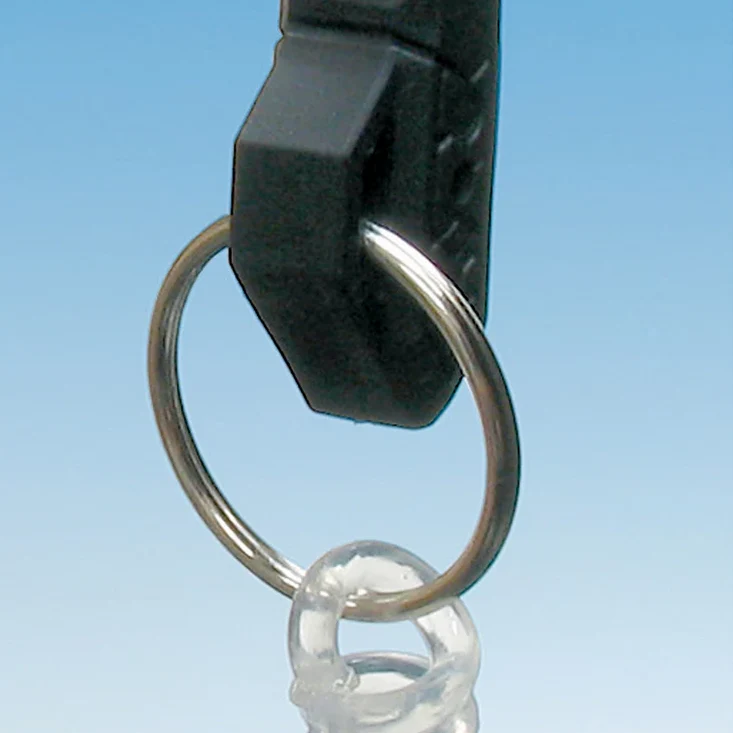

ESD-Safe handles made of thermoplastic elastomer (TPR) with strap holes

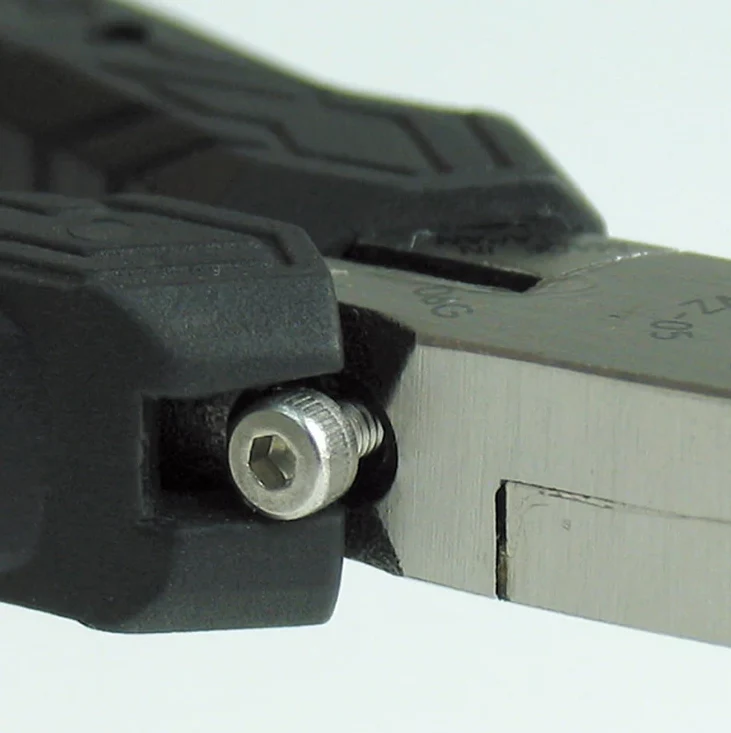

With opening angle adjuster (Max.5mm)
1.5mm hex key wrench provided as a standard accessory to adjust
an opening angle and fasten the screw
With coiled spring
NZ-03

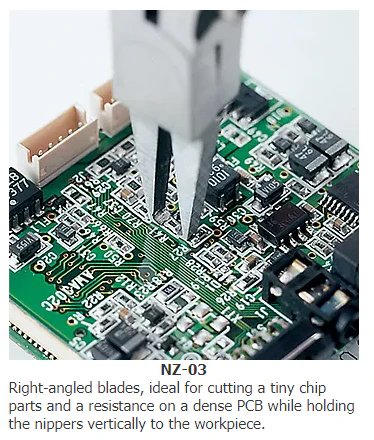

Right-angled blades, ideal for cutting a tiny chip parts and a resistance on a dense PCB while holding the nippers vertically to the workpiece.

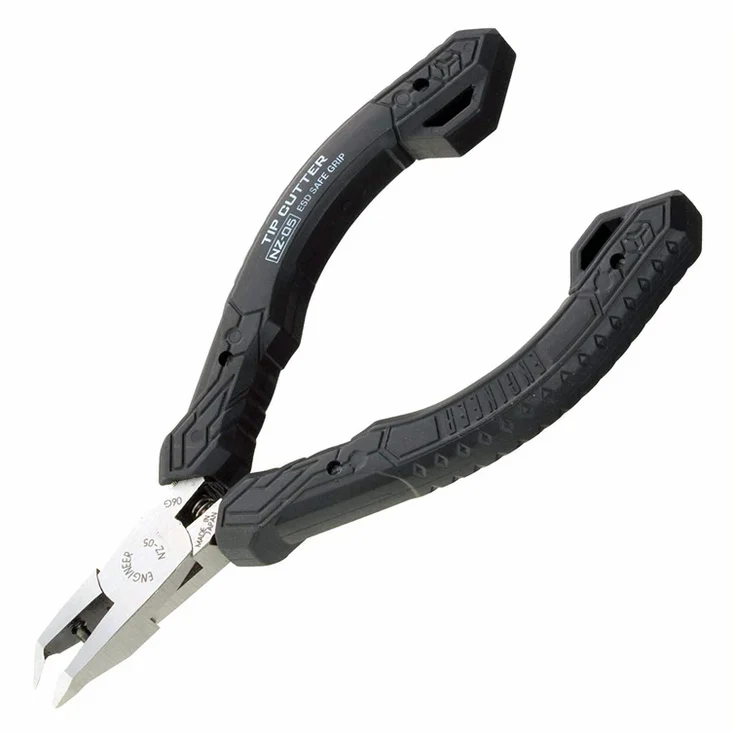

NZ-05

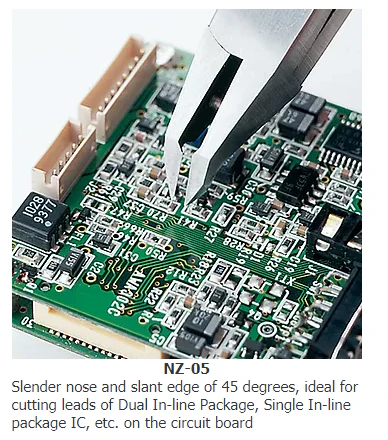

Slender nose and slant edge of 45 degrees, ideal for cutting leads of Dual In-line Package, Single In-line package IC, etc. on the circuit board
Original: $68.00
-70%$68.00
$20.40
Description
NZ-03 / NZ-05 Chip Cutter
Ideal for removal of Chip Resistance, IC, etc. on dense S.M.D.
ESD-Safe handles made of thermoplastic elastomer (TPR) with strap holes
With opening angle adjuster (Max.5mm)
1.5mm hex key wrench provided as a standard accessory to adjust
an opening angle and fasten the screw
With coiled spring
NZ-03
Right-angled blades, ideal for cutting a tiny chip parts and a resistance on a dense PCB while holding the nippers vertically to the workpiece.
NZ-05
Slender nose and slant edge of 45 degrees, ideal for cutting leads of Dual In-line Package, Single In-line package IC, etc. on the circuit board
